Description
This model has similar specifications to Oculus UB4
Lightweight structure, suitable for all standard Ø38mm trial lenses.

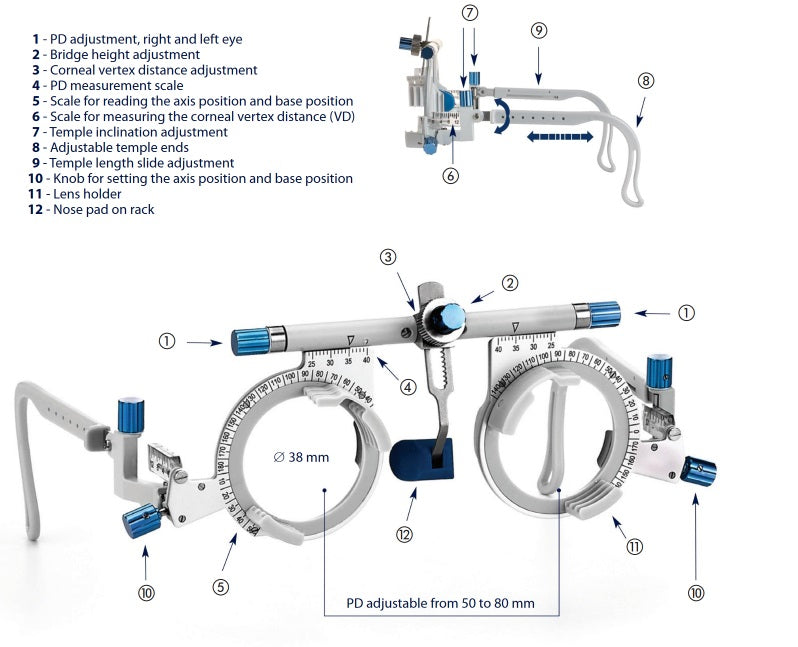

- Standard Axis rotation.
- Back vertex distance measurement gauge.
- Independent monocular adjustments for optical centres.
- Vertical and projection bridge adjustments.
- Temple length and inclination adjustable.
- PD adjustable range 50 to 80mm.
- Right and left PD adjustable independently from 25 to 40mm.
- Bridge height adjustable by up to 23mm.
- Temple adjustment in length from 100 to 135mm and inclination from +6° to -15°.
- 5 Lens holders each eye: 3 external rotating by 360° and 2 fixed internal.
- Axis rotation is continuously adjustable, in increments of 5°.
Weight 55 grams.
Replacement components available if required.
Please click on below link for more information
